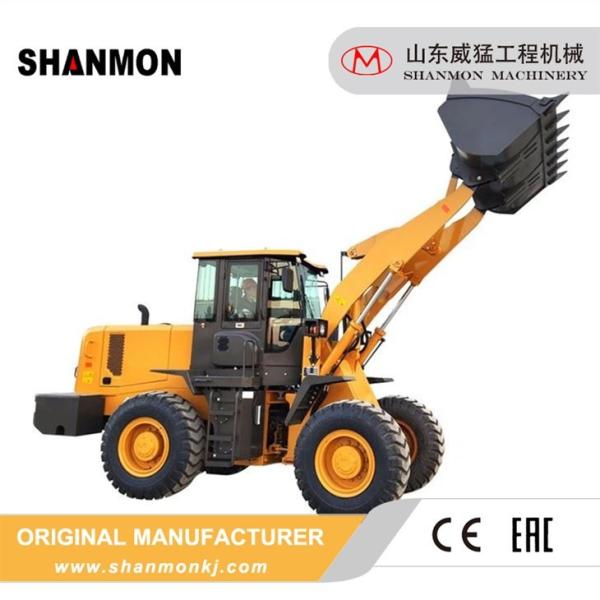

3 Ton Front End Loader is specially developed and designed for traffic construction, municipal sanitation, gravel quarry and other working conditions, with reliable, mature and stable quality.
Features:
1. 3 Ton Front End Loader meets National II to Euro V emission requirements, with reasonable power matching, large torque reserve coefficient and strong power.
2. The hydraulic pipeline adopts the international DIN standard 24° cone plus O-ring two sealing, better sealing, and effectively solve the problem of leakage.
3. The standard fixed-shaft transmission with the largest market
share is more mature, reliable and longer-lasting than the
planetary box in the same industry. The drive shaft adopts
international standards and increases the diameter of fixed bolts,
so that it is strong and torsion-resistant and can adapt to the
requirements of high-strength, continuity, and heavy-load work, and
the drive axle has a good overload-resistant ability, which can
meet the needs of high-strength and high-load work and is durable.
4. 3 Ton Front End Loader equipped with electronically controlled
high-pressure common rail engine, fuel injection using ECU control,
high combustion efficiency, more economical and fuel-efficient.
5. 3 Ton Front End Loader adopts large-displacement single-pump manifold hydraulic system, with large cylinder power, fast arm lifting and faster loading speed.
6. The operating elements and buttons are within easy reach, which can easily realise various operating actions; the full-covered exquisite interior and rubber flooring create the best operating environment; the full-view rear glass and high-mounted rear lamps provide a good sight line and safety for reversing.
7. Skeleton structure bonnet, upturned large side door, large opening angle, engine and radiator overhaul, maintenance is easier, centralised fuse box, electrical system operating conditions are centrally displayed, maintenance is convenient.
8.The exclusive low-speed and high-torque Weichai engine for 3 Ton Front End Loaders adopts the latest WP10H platform with flexible electromagnetic fan, which is advanced and reliable, powerful, funny and fuel-saving, quiet and comfortable, intelligent and environmentally friendly, and reduces the fuel consumption by 10% compared with that of the engine on the WP10 platform;
Main specifications:
| Performance | Loader lifting capacity | 3000KG |
| Operating weight | 10000KG | |
| Rated bucket capacity | 1.8m³ | |
| Max. tractive force | 97KN | |
| Max. breakout force | 127KN | |
| Max. grade ability | 30° | |
| Max. dump height | 3100mm | |
| Max. dump reach | 1130mm | |
| Overall dimension(L×W×H) | 7180×2350×3230mm | |
| Min. turning radius | 6250mm | |
| Engine | Model | Weichai |
| Type | Inline, water-cooled, four stroke | |
| Cylinder-Inner diameter×stroke | 6-108×130mm | |
| Rated power | 92KW | |
Maximum torque | 500N.m | |
Min fuel-consumption ratio | ≤213g/kw.h | |
Transmission system | Torque converter | YJ320B-1 |
Gearbox mode | Powershift engaged straight gear | |
Gear shift | 4 forward shift and 2 reverse shift | |
Maximum speed | 38km/h | |
| Drive axles | Wheel base | 2758mm |
Wheel tread | 1800mm | |
Ground clearance | 400mm | |
| Hydraulic system | System working pressure | 16Mpa |
| Boom lifting time | 4.83s | |
| Total time | 9.15±0.5s | |
| Fuel tank capacity | 170L | |
| Self-levelling bucket | yes | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Manual brake | |
| Tire | Tire specification | 17.5-25 |
Front tire pressure | 0.4Mpa | |
Rear tire pressure | 0.35Mpa |
Operating Video:
Attachments:
FAQ:
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Wheel loader /Telehandler /Backhoe Loader
3. what services can we provide?
Accepted Delivery Terms: FOB,EXW, DAP ;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese,Russian
4. Why choose us?
Shandong Weimeng Engineering Machinery Co., Ltd was established in 1999. We Shanmon brought the first modernized backhoe loader to China in 2007, eventually expanding to four different series products and exceeding 1000 units monthly production today. Our products has been sold to the United States, Russia, Middle East, Japan, the Philippines, Malaysia, India, Europe, Africa and other regions internationally. We guarantee the quality of production, have a professional production team, sales and after-sales team, and provide customers with the best buying experience in addition to providing professional products.
